PILOT AND MECHANIC SUPPLIES
AIRCRAFT SPARK PLUG TRAY-HOLDS 12 SPARK PLUGS EACH HOLE STAMPED WITH CYLINDER NUMBER FOR TOP AND BOTTOM SO EACH PLUG CAN BE IDENTIFIED EASILY NO MIX-UPS, PLUGS CAN BE SERVICED AND RETURNED BACK TO WHERE THEY WERE REMOVED,HANDLE TELESCOPES FOR EASY STORAGE. A MUST FOR AIRCRAFT OWNERS AND MECHANICS.
MADE FROM 18 GAUGE STEEL. BLUE POWDER COAT FINISH.HANDLE COLLAPSES FOR EASY STORAGE. Made in USA DIMENSIONS: W=4.0" , L= 8.0" , H= 2.6"
P/N FAP-12 ---- VERY REASONABLE PRICE-----
MADE FROM 18 GAUGE STEEL. BLUE POWDER COAT FINISH.HANDLE COLLAPSES FOR EASY STORAGE. Made in USA DIMENSIONS: W=4.0" , L= 8.0" , H= 2.6"
P/N FAP-12 ---- VERY REASONABLE PRICE-----
____________________________________________________________________________________________________
____________________________________________________________________________________________________
____________________________________________________________________________________________________
**** NEW ITEM !!!!!

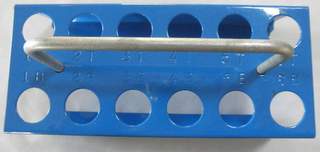

ALSO 18 HOLE PLUG TRAY AVALIBLE SAME AS 12 HOLE BUT 18 HOLES ------- P/N FAP-18
VERY REASONABLY PRICED. Color: Blue
_________________________________________________________________________
ALSO 18 HOLE PLUG TRAY AVALIBLE SAME AS 12 HOLE BUT 18 HOLES ------- P/N FAP-18
VERY REASONABLY PRICED. Color: Blue
_________________________________________________________________________
_____________________________________________________________________________________________________
_____________________________________________________________________________________________________
_____________________________________________________________________________________________________
Oil Filter Cutting Tool- For Filter Internal Inspection:
Cuts filter quickly and cleanly without the oily mess from most tools sold on the market today. Removable center spindle for 13/16"-16 or ¾"-16 filter threads (the common filter threads). Simply screw filter onto bottom of tool and move cutting wheel into filter while cranking the handle. Tool can be placed in a bench vise (has steel clamping bar) the most popular method.Or remove clamp bar, by removing the clamp bar the tool can be mounted directly to a bench or on the wall, in a bench vise wherever you choose. Heavy-duty steel construction, high quality rugged design, hardened cutter. This is not a cheaply built tool, its all-metal construction will provide years of use. Our products are built to last, not a cheep imported tool or made from imported parts.P/N FAP-16
Replacement cutters available. P/N FAP-16C
Cuts filter quickly and cleanly without the oily mess from most tools sold on the market today. Removable center spindle for 13/16"-16 or ¾"-16 filter threads (the common filter threads). Simply screw filter onto bottom of tool and move cutting wheel into filter while cranking the handle. Tool can be placed in a bench vise (has steel clamping bar) the most popular method.Or remove clamp bar, by removing the clamp bar the tool can be mounted directly to a bench or on the wall, in a bench vise wherever you choose. Heavy-duty steel construction, high quality rugged design, hardened cutter. This is not a cheaply built tool, its all-metal construction will provide years of use. Our products are built to last, not a cheep imported tool or made from imported parts.P/N FAP-16
Replacement cutters available. P/N FAP-16C

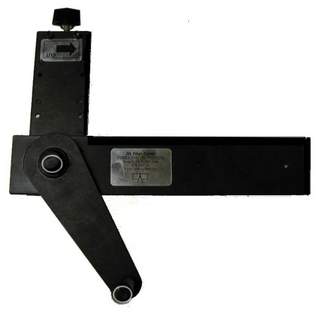

FAP-16 FILTER CUTTER ASSEMBLED
|

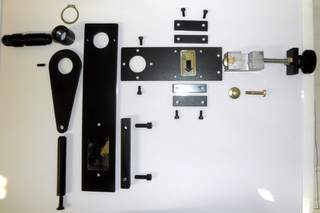

FAP-16 FILTER CUTTER PARTS
|
FAP 06 DRILL JIG PARTS
DRILL JIG FOR STANDARD 2 1/4" & 3 1/8" DIAMETER INSTRUMENT MOUNTING HOLES.
ACCURATE SIMPLE TOOL TO USE AFTER MACHINING INSTRUMENT HOLE ALIGN JIG USEING ON OF THE STRAIGHT EDGES AND CLAMP IN PLACE WITH PROPER CENTER DISC, DRILL THROUGH OR SPOT DRILL HOLE REMOVE JIG AND DRILL THROUGH AND DEBURR HOLES. DRILL JIG MADE OF HARDENED STEEL FOR LONG LIFE. Made in USA
P/N FAP 06
____________________________________________________________________________
ACCURATE SIMPLE TOOL TO USE AFTER MACHINING INSTRUMENT HOLE ALIGN JIG USEING ON OF THE STRAIGHT EDGES AND CLAMP IN PLACE WITH PROPER CENTER DISC, DRILL THROUGH OR SPOT DRILL HOLE REMOVE JIG AND DRILL THROUGH AND DEBURR HOLES. DRILL JIG MADE OF HARDENED STEEL FOR LONG LIFE. Made in USA
P/N FAP 06
____________________________________________________________________________
Replace worn out shaft assembly with new shaft, bearing holders, bearings and new index clip for carburetor heat control. An economical repair. Certified aircraft. Requires a 337 form on certified aircraft. WILL NOT WORK ON LYCOMING AIR BOX.
P/N FAP-01 for Continental C85, C90 & 0200. Shaft mat'l 4130 - .250 dia. x 5 .130 long shaft. Weight: 3.5 oZ
P/N FAP-02 for Continental C-145 & 0300. Shaft mat'l 4130- .250 dia. x 6.130 long shaft. Weight: 3.7 oz
________________________________________________________________________________________________________________
P/N FAP-01 for Continental C85, C90 & 0200. Shaft mat'l 4130 - .250 dia. x 5 .130 long shaft. Weight: 3.5 oZ
P/N FAP-02 for Continental C-145 & 0300. Shaft mat'l 4130- .250 dia. x 6.130 long shaft. Weight: 3.7 oz
________________________________________________________________________________________________________________

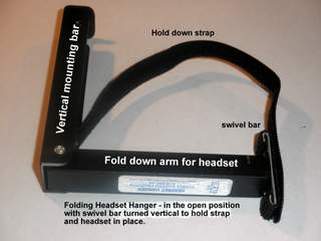

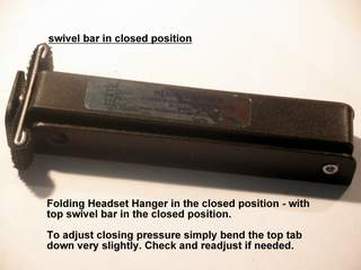

FOLDING HEADSET HANGER
P/N FAP- 13
P/N FAP- 13
- A GREAT PLACE TO PUT YOUR HEAD SET WHEN NOT IN USE
- FOLDS UP OUT OF THE WAY WHEN NOT IN USE
- HOOK & LOOP STRAP TO HOLD HEADSET WHEN NOT IN USE
- DURABLE HEAT TREATED ALUMINUM CONSTRUCTION
- MEASURES APP. 1.0W X 5/8 H X 4.0 LONG
- MADE IN USA---- NOT A IMPORT
- NO PLASTIC
- Mount permently with 2 screws or use hook and loop with adhesive backing.
Weight: 1.75 oz - MEASURES- 1.0W X 5/8W X X1.0 LG
SPARK PLUG GAPPING TOOL
AN ECONOMICAL TOOL FOR GAPPING SPARK PLUGS. SCREW IN PLUG AND SET GAP BY TURNING EITHER THUMBSCREW FOR DESIRED GAP. MADE OF STEEL WITH BLACK OXIDE FINISH.
DIMENSIONS: 1.25 DIA.X .80.
P/N FAP-11
____________________________________________________________________________________________________
AN ECONOMICAL TOOL FOR GAPPING SPARK PLUGS. SCREW IN PLUG AND SET GAP BY TURNING EITHER THUMBSCREW FOR DESIRED GAP. MADE OF STEEL WITH BLACK OXIDE FINISH.
DIMENSIONS: 1.25 DIA.X .80.
P/N FAP-11
____________________________________________________________________________________________________
3ATI INSTRUMENT DRILL JIG & FILING TEMPLETE
A SIMPLE TOOL USED TO MAKE THE IRREGULAR 3ATI AIRCRAFT INSTRUMENT MOUNT WHICH IS DIFFICULT TO DO WITH OUT A TOOL LIKE THIS OR BY USING AN EXPENSIVE HOLE PUNCH. WITH PRACTIC AND GOOD TECHNIQUE ACCURATE AND QUICK 3ATI INSTRUMENT MOUNTING IS POSSIBLE. TOOL IS MADE FROM HEAT TREATED ALLOY STEEL.
P/N FAP 07-1
____________________________________________________________________________________________________
A SIMPLE TOOL USED TO MAKE THE IRREGULAR 3ATI AIRCRAFT INSTRUMENT MOUNT WHICH IS DIFFICULT TO DO WITH OUT A TOOL LIKE THIS OR BY USING AN EXPENSIVE HOLE PUNCH. WITH PRACTIC AND GOOD TECHNIQUE ACCURATE AND QUICK 3ATI INSTRUMENT MOUNTING IS POSSIBLE. TOOL IS MADE FROM HEAT TREATED ALLOY STEEL.
P/N FAP 07-1
____________________________________________________________________________________________________
***END
